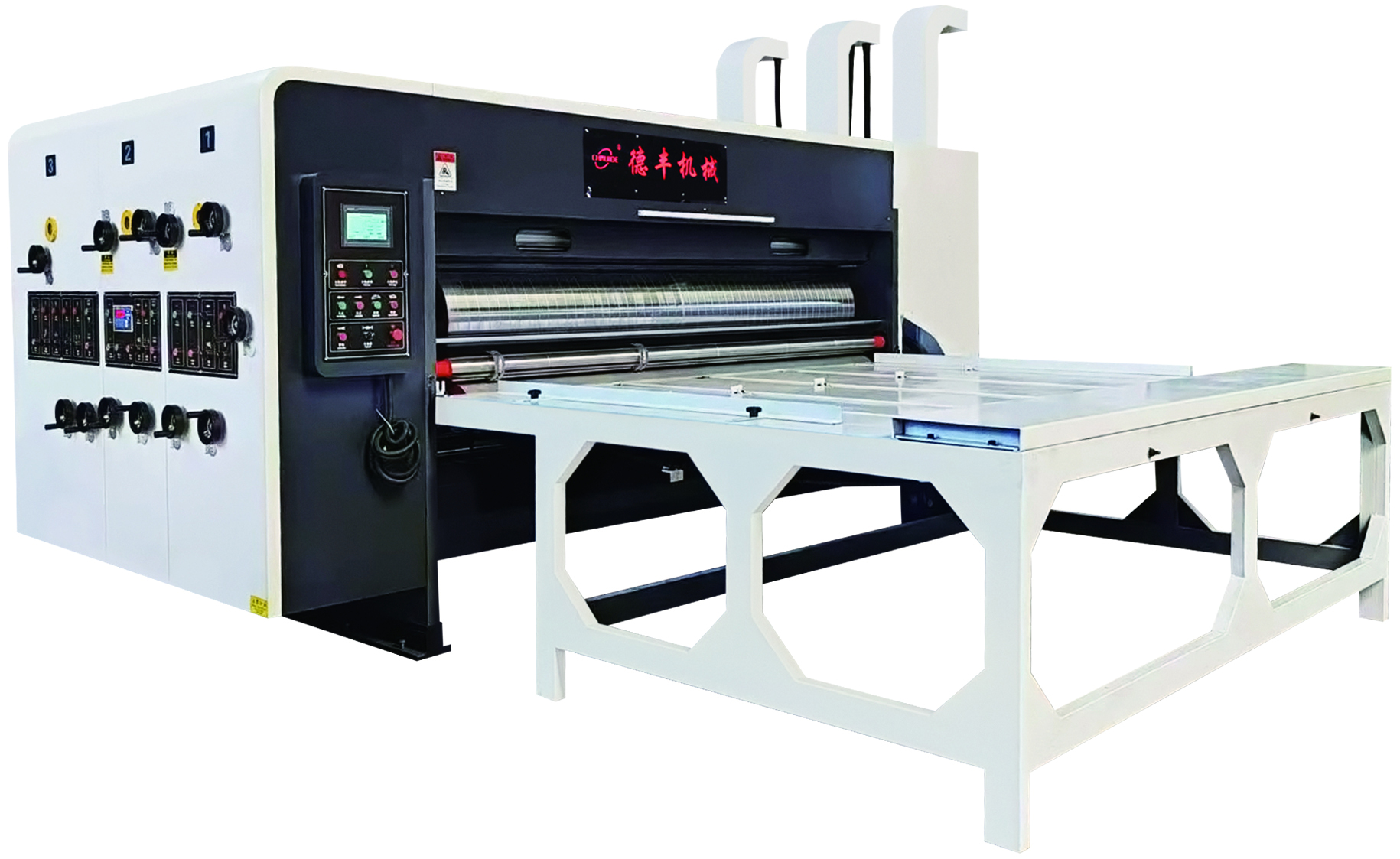

DF-B Intelligent Digital Short-Run Printing, Slotting and Die-Cutting Machine

Get A Quote
  • DF-B Intelligent Digital Short-Run Printing, Slotting and Die-Cutting Machine,MY SHOP,DF-B Intelligent Digital Short-Run Printing, Slotting and Die-Cutting Machine

Function and characteristic
  • Sustainable chain feeding and counter recording of production volume.
  • The through-hole design of the workbench surface allows for arbitrary adjustment of the position oftheleft and right cardboard blocks.
  • Each unit of the whole machine is electrically separated separately, and a continuous alarm bellsoundsduring separation to ensure safety.
  • Equipped with an emergency stop switch, used in case of urgent shutdown.
  • Automatic oil balance ensures that the lubricating oil level of each unit is basically consistent.
  • Keyless structure, can maintain color accuracy for a long time.
  • The fixed differential speed between the rubber roller and the mesh roller enables the rubber rollertoscrape ink.
  • Pneumatic diaphragm pump for ink supply, making ink supply more uniform and easier to control theinksupply volume.
  • Printing phase electric digital control.
  • The lateral displacement of the plate roller is controlled mechanically and manually, with a totalcontrolrange of + 7mm.
  • The pneumatic brake structure controls the rotation of the plate roller and various transmission partsofthe unit when the unit is separated, so that the printing position will not change.
  • All models in the series are equipped with a pre press line function, which increases thecompressivestrength of the cardboard box through the pre press line. The cormers of the cardboardbox wil not have acurved shape.
  • The slotting knife holder and the horizontal movement of the pressure line adopt a manualsynchronoushorizontal movement structure.
  • Slotting phase electric digital control, synchronous adjustment of box height with four knives.
  • Optional: ceramic anilox roller, doctor blade and set ink system, stacking machine.


 Technical Parameters
Model Max.paper size Effective printing size Printing plate thickness Min.paper feed size Speed Dia.
YSM-A2000 1800×900mm 1700×900mm 4-7mm 250×600mm 80 300
YSM-B2600 2400×1200mm 2300×1200mm 4-7mm 300×600mm 60 405
YSM-C2800 2600×1400mm 2500×1400mm 4-7mm 300×600mm 60 480
YSM-D2800 2600×1600mm 2500×1600mm 4-7mm 400×600mm 60 530
YSM-D3000 2800×1800mm 2700×1800mm 4-7mm 500×600mm 60 600
